Perspective Design In Creo

How to design in perspective with creo.

Perspective design in creo. I work with industrial designers and one thing i am constantly asked is to view the model in perspective. Users can also now design in creo while maintaining perspective display mode. Creo s modeling and design features allow you to create detailed 3d prototypes in a virtual environment. Perspective mode is available in both part and assembly modes.

What s new creo 5 0 creo tutorials fundamentals model based definition data management design exploration part modeling data exchange detailed drawings layout surfacing rendering assembly design advanced framework design welding design electrical design piping manufacturing mold design and casting sheetmetal model analysis. Change the perspective mm to whatever then save the view. Unlike some of my industrial design buddies who gave up on creo formerly proe opting for other cad programs tailored for. The creo collaboration extension for autodesk inventor enables organizations to consolidate onto a single cad system enabling them to reduce the cost and effort associated with maintaining multiple systems and integrations and enabling better data reuse and resource sharing.

Think of perspective view as a virtual tour of the design from the end user s point of view. I m relishing the thought of giving my eyes and brain a long awaited respite. Instead of just having a perspective button you have to set up the view and the camera often snaps way in so you can t see anything until you zoom back out. Creo 5 0 now lets you model in perspective.

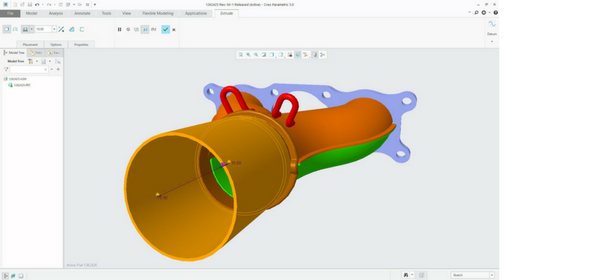

Users can also now design in creo while maintaining perspective display mode. Go to the model display tab. Proe allows this but there are some incredibly annoying constraints. Then change the perspective mm to something else and save the view.

We don t teach creo we teach ways of thinking. You can do this using one of two approaches direct modeling in which you can pull and push directly on geometry and parametric modeling in which all components are related and a change in one will result in a change in all. At design engine we empower manufacturers engineers and designers to gain a different perspective by presenting new ways to think about and explore design iterations. You can switch between them with that.

The procedure is slightly different in the latest creo 5 0 1 0 as they have combined the view orientation dialog and the perspective view dialog into a single dialog. Read more march 18 2019 no comments. Creo is a computer aided design cad program that was initially released in 1987 as pro engineer by the company parametric technology corporation ptc. Design engine s passionate and knowledgeable staff have decades of design and engineering experience.
