Corona Ring Design Parameters

The role of the corona ring is to distribute the electric field gradient and lower its maximum values below the corona threshold either preventing corona discharge entirely or transferring its. A corona ring also called an anti corona ring is a toroid of conductive material usually metal which is attached to a terminal or other irregular hardware piece of high voltage equipment. Simulation enables you to calculate fields in to help find ring configurations to keep fields below set thresholds.

program proiectare desen tehnic riki miki desene animate printese desene de colorat pentru copii printesa anastasia desene animate dublat in romana printesa furata desene animate dublate in romana rdm design ballerina prezzi printesa diana desene animate roof modern car porch designs for houses

Pdf Design Of Corona Rings For 380 Kv Nonceramic V Insulator String

Circular Corona Ring Design Parameters Units Cm Download

Illustrates The Circular Type Corona Ring Models A B C And D

Figure 2 From Impacts Of Corona Rings On The Insulation

Figure 2 From Effects Of Corona Ring Design Upon Impulse Voltage

Parameters Design Optimization Of 230 Kv Corona Ring Based On

The analysis is based upon finite element method fem and the results obtained through the simulations.

Corona ring design parameters. This paper presents corona ring optimization for 380 kv v insulator string composed of glass insulator units. The purpose of the simulations is to find reasonable corona ring design parameters such as corona ring diameter corona tube diameter and installation. In this paper corona ring design for a 400kv composite insulator is investigated aiming at e field and voltage regulation along the insulator. Fem model of insulator string and corona ring.

Corona and grading rings are used to modify the strength and gradient of electric fields around high voltage equipment. The influence of the corona ring design parameters are examined not only with regard to 3d simulations but also laboratory tests. R d and h show design parameters of the corona ring. The effects of the corona ring s design parameters on e field and voltage control are studied.

Optimal design of corona ring on hv composite insulator using pso approach with dynamic population size abstract. 98 6 10 results from optimization for 345 550 kv. They are also called as anti corona rings corona rings are used to prevent corona discharge that occurs in high voltage power lines corona discharge or corona loss is a significant issue with very high voltage power lines which causes power loss. Corona ring optimization for a 1000 kv composite insulator was per formed by changing parameters of the ring such as the diameter of the ring thickness of the ring tube and the projection of the ring from the high voltage energized end fitting.

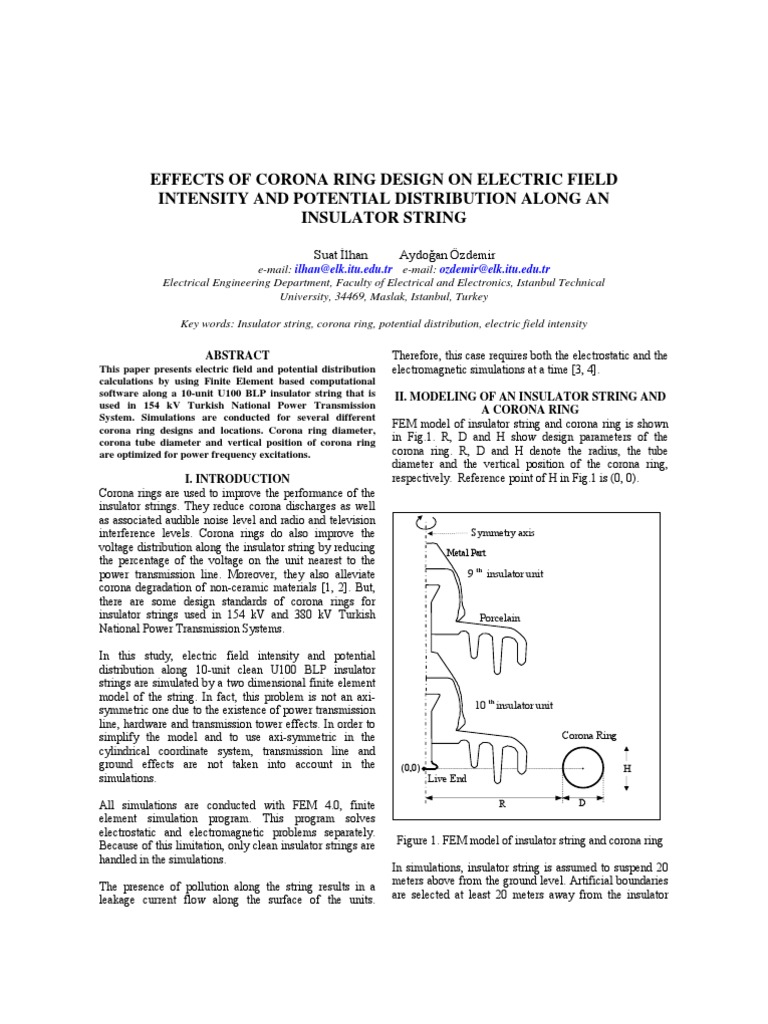

6 8 jackknife for 345 550 kv model and parameters obtained from jmp. A corona ring fem model of insulator string and corona ring is shown in fig 1. R d and h denote the radius the tube diameter and the vertical position of the corona ring respectively. Reference point of h in fig 1 is 0 0.

Optimum corona ring design for high voltage compact transmission lines using gaussian process model by nihal mohan. Corona rings are toroidal shaped metallic rings which are fixed at the end of bushings and insulator strings. 97 6 9 marginal model plots for 345 550 kv case. For axisymmetric configurations electro in rs mode is very fast and accurate.

This paper deals with the use of corona ring at the hv end fitting for improving the electric field and potential distributions and then for minimizing the corona discharges on 230 kv ac transmission line composite insulator.
